101D-TAAB-R01

101D-TAAB-R01

$1.176 USD

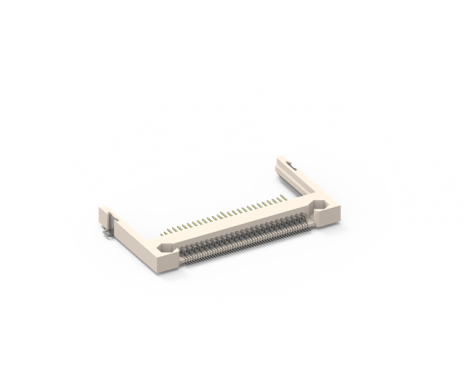

CF Socket Slim Type Top Mount, Positioning Dist.= 38.74mm, GF

Available on Backorder: Please email us at aspeed-order@aspeedelectronics.com to get a stock alert



For More than 5000 pcs, You can contact us and request for price
SKU: 101D-TAAB-R01 Categories: , ,

Description

Packing: Tray
MPQ: 400
MOQ: 2K

Offer a portable, mass-storage and compact size usage for digital recode devices, the CompactFlash family storage card is one of the success standards in the market of the early memory card formats. And to solve the large data transfer, CompactFast has been launched as a variant of CompactFlash that supports a higher maximum transfer rate. They are the most popular storage in many professional devices and high-end consumer devices today. ATTEND offers a full range of CF / CFast family connector for your product solution.

Specification:

ELECTRICAL

Current Rating 0.5AMP
Voltage Rating 100V AC/DC
Contact Resistance 40mΩ
Insulation Resistance 1000MΩ
Dielectric Withstanding Voltage 500V AC for 1 min.

MECHANICAL

Durability 10,000 Cycle
Insertion Force 28.8N
Extraction Force 4.9N

ENVIRONMENTAL

Operating temperature range -40℃~+85℃
Storage temperature range -40℃~+85℃
Extraction Force 4.9N

SOLDER ABILITY

Recommended IR Reflow Temperature 260℃ 10Sec.

Additional information

Country Of Origin

CN

Brand

Attend
