Card Connector, Connector, Push Push Type, SD Card Socket

104D-RCA0-RA1

Name: 104D-RCA0-RA1
SKU: 104D-RCA0-RA1
Availability: BackOrder

Availability:

Available on Backorder: Manufacturer lead time 10-12 weeks

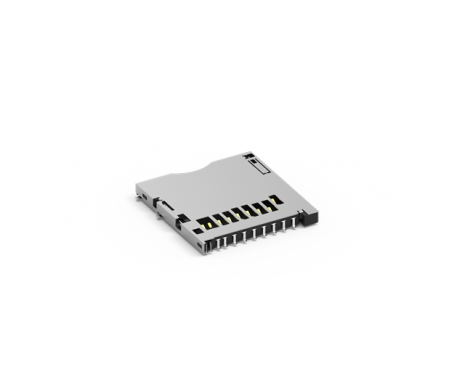

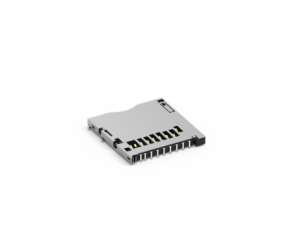

SD Socket Reverse Push-Push Type w/switch, 5u”

$1.932 USD

Available on Backorder: Manufacturer lead time 10-12 weeks

Packing: Reel
MPQ: 350
MOQ: 350

The Secure Digital Memory Card becomes a standard application for different industries since it’s first launched in the market with a variety of sizes to fit in different usage. Today, SD / Micro SD card become the standard portable storage solution. ATTEND’s SD / Micro SD card socket featured a durable design in multiple types, such as push-pull, hinge, push-push, and combo (Micro SD+SIM) type.

Specification:

ELECTRICAL

Current Rating	0.5A MAX.
Voltage Rating	100V AC
Contact Resistance	100mΩ
Insulation Resistance	1000MΩ
Dielectric Withstanding Voltage	500V AC

MECHANICAL

Contact Retention Force	0.25kgf Min.
Insertion Force	4.2kgf Max.
Withdrawal Force	0.21kgf Min.
Durability	5,000 Cycles

ENVIRONMENTAL

Operating temperature range	-20℃~+85℃

SKU: 104D-RCA0-RA1 Categories: Card Connector, Connector, Push Push Type, SD Card Socket

Country Of Origin	CN

Brand

Attend
