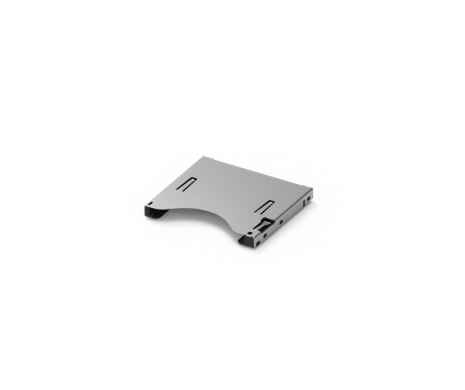

104D-TCA0-R06
Available on Backorder: Manufacturer lead time 10-12 weeks
SD Socket Push-Push Type w/switch, 10u”
$1.624 USD
Available on Backorder: Manufacturer lead time 10-12 weeks
Packing: Reel
MPQ: 450
MOQ: 450
The Secure Digital Memory Card becomes a standard application for different industries since it’s first launched in the market with a variety of sizes to fit in different usage. Today, SD / Micro SD card become the standard portable storage solution. ATTEND’s SD / Micro SD card socket featured a durable design in multiple types, such as push-pull, hinge, push-push, and combo (Micro SD+SIM) type.
Specification:
INSULATOR
| Plastic Body | LCP+35%GF, Color Black |
|---|---|
| Slider | LCP+35%GF, Color Black. |
SHELL OR COVER
| Shell | SUS304R-3/4 H |
|---|---|
| Latch | SUS304R-3/4 H |
| Spring | Piano Wire |
| Drag Link | SUS304 |
OTHERWISE SPECIFIED
| Operating Temperature | -25℃to +90℃ |
|---|---|
| Storage Temperature | -40℃to +90℃ |
| Ambient Humidity | 90%～95% R.H. |
CONTACT
| Contact | Phosphor Bronze Alloy (C5210R–EH) |
|---|---|
| Switch A/C | Phosphor Bronze Alloy (C5210R–EH) |
| Hold down | Phosphor Bronze Alloy (C5191R–H). |
| Contact area | Gold 10 micro inches (Min.) |
| Solder area | Gold flash |
| Solder area | Gold flash All under-plated Ductile Nickel 50 micro inches (Min.) |
| Switch A/C & Hold down | Contact area: Gold flash,Solder area: Gold flash All under-plated Ductile Nickel 50 micro inches (Min.) |
| Country Of Origin | CN |
|---|
Brand
Attend
