112A-TAAR-R03
$1.232 USD

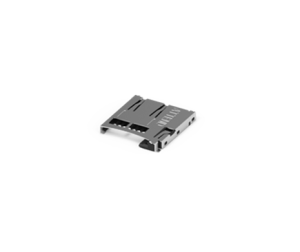

Micro SD Socket Push-Push Type H=1.83mm, 10u”
Available on Backorder: Manufacturer lead time 10-12 weeks
Description
Packing: Reel
MPQ: 1000
MOQ: 1000
The Secure Digital Memory Card becomes a standard application for different industries since it’s first launched in the market with a variety of sizes to fit in different usage. Today, SD / Micro SD card become the standard portable storage solution. ATTEND’s SD / Micro SD card socket featured a durable design in multiple types, such as push-pull, hinge, push-push, and combo (Micro SD+SIM) type.
Specification:
ELECTRICAL
| Current Rating | 0.5A per pin |
|---|---|
| Voltage Rating | 100VAC/DC |
| Contact Resistance | 50mΩ Max. |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500VAC |
MECHANICAL
| Terminal Durability | 10,000 Cycle |
|---|---|
| Insertion Force | 9.8N Max. |
| Extraction Force | 9.8N Min. |
ENVIRONMENTAL
| Operating temperature range | -40℃~+90℃ |
|---|---|
| Storage temperature range | -40℃~+90℃ |
SOLDER ABILITY
| Recommended IR Reflow Temperature | 260℃ |
|---|---|
| Recommended PCB Thickness | 1.0mm |
Additional information
| Country Of Origin | CN |
|---|
Brand
Attend
