114B-40B00-R02

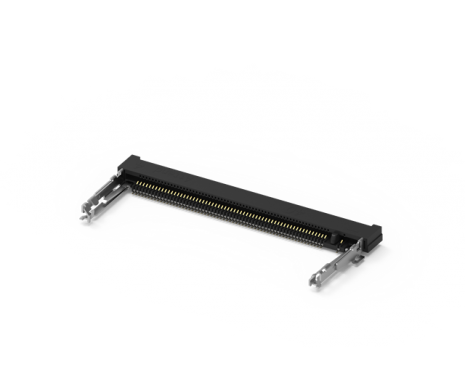

Mini PCI Socket

114B-40B00-R02

$1.876 USD & Free Shipping

MiniPCI Socket, H=4.0mm, 3u”

Available on Backorder: Manufacturer lead time 10-12 weeks



For More than 5000 pcs, You can contact us and request for price
SKU: 114B-40B00-R02 Categories: , ,

Description

Packing: Tray
MPQ: 400
MOQ: 1.2K

The Mini PCI was originally designed for space-saving solutions for the laptop since the standard size for Mini PCI cards is approximately a quarter of their full-sized counterparts. Its development allows all the portable devices to have the possibility of shrinking and lightweight. Today, since the mini PCI featuring stability and affordable, it still used in the industrial embedded system for data transmission.

Specification:

ELECTRICAL

Current Rating 0.3A Max. per pin
Voltage Rating 25V AC
Contact Resistance 30MΩ Max.
Insulation Resistance 500MΩ Max.
Dielectric Withstanding Voltage Matte Connector: apply 250V AC at 60Hz (rms.)

MECHANICAL

Contact Normal Force 50 gf per pin Min.

ENVIRONMENTAL

Operating temperature range -40°C~+90°C
Storage temperature range – 40°C~+90°C

SOLDER ABILITY

Recommended IR Reflow Temperature 260℃

Additional information

Country Of Origin

CN

Brand

Attend
