115B-BAA0-R01
$0.672 USD

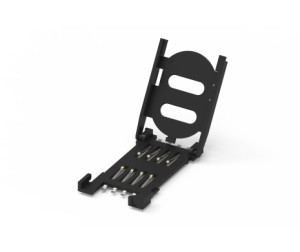

SIM Card Socket Hinge Type, 6 Pin w/Peg, GF
Available on Backorder: Manufacturer lead time 10-12 weeks
Description
Packing: Reel
MPQ: 650
MOQ: 650
SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) number securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of mini SIM, Micro SIM and Nano SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.
ELECTRICAL
| Current Rating | 0.5A per pin |
|---|---|
| Voltage Rating | 30V AC/DC |
| Contact Resistance | 30mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500V AC |
MECHANICAL
| Durability | 5,000 Cycle |
|---|
ENVIRONMENTAL
| Operating temperature range | -40°C~+85°C |
|---|---|
| Storage temperature range | -40°C~+85°C |
SOLDER ABILITY
| Recommended IR Reflow Temperature | 260℃ 10sec |
|---|
Additional information
| Country Of Origin | CN |
|---|
Brand
Attend
