115C-AC00-01

Request for Quote

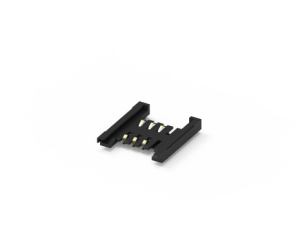

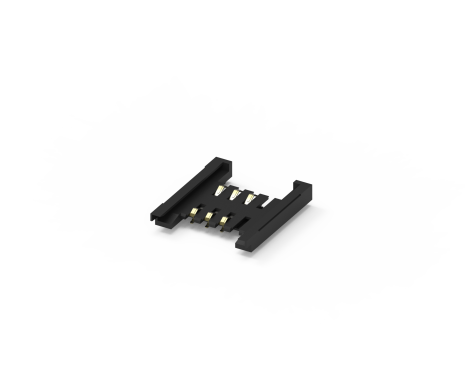

SIM Card Socket holder Type, 6 Pin H=2.6mm, 5u”

Available on Backorder: Please email us at aspeed-order@aspeedelectronics.com to get a stock alert



For More than 5000 pcs, You can contact us and request for price
SKU: 115C-AC00-01 Categories: , , ,

Description

Packing: Reel
MPQ: 600
MOQ: 3.6K

SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) number securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of mini SIM, Micro SIM and Nano SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.

ELECTRICAL

Current Rating 0.5A per pin
Voltage Rating 100VAC/DC
Contact Resistance 50mΩ
Insulation Resistance 1000MΩ
Dielectric Withstanding Voltage 500VAC

MECHANICAL

Terminal Durability 5,000 Cycle

ENVIRONMENTAL

Operating temperature range -40°C~+85°C
Storage temperature range -40°C~+85°C

SOLDER ABILITY

Recommended IR-Reflow Temperature 260°C

Additional information

Country Of Origin

CN

Brand

Attend
