115S-BS00
$2.492 USD

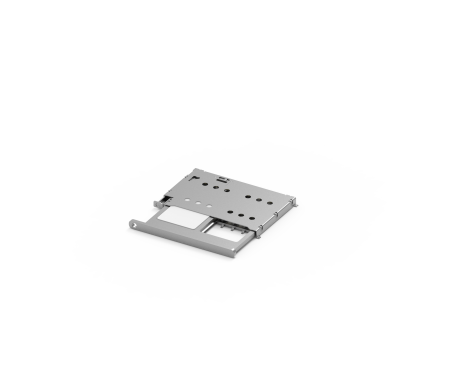

Nano SIM Socket Dual Card Tray Eject type Type
Available on Backorder: Manufacturer lead time 10-12 weeks
Description
Packing: Reel
MPQ: 1.2K
MOQ: 1.2K
The Nano SIM (also known as the 4FF) card only measure 12.3 × 8.8 × 0.67 mm, the original design purpose was fit the mobile device. Even it reduces the area, it still maintaining the existing contact arrangements and provide all designer another solution to saving the cost in PCB layout design. As the professional communication solution provider, ATTEND Tech offering the maximizing options to fit with any request, including the bar push eject type with multiple tray option, push-push type, hinge type and dual bar push eject type.
ELECTRICAL
| Current Rating | 0.5A max. |
|---|---|
| Voltage Rating | 10VAC/DC |
| Contact Resistance | 50mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Dielectric Withstanding Voltage | 500VAC for 1 minute |
MECHANICAL
| Durability | 2,000 Cycle |
|---|---|
| Tray Insertion Force | 10N max. |
| Tray Extraction Force | 3N min. |
| Contact Normal Force | 0.2N min. per pin |
ENVIRONMENTAL
| Operating temperature range | -40°C~+105°C |
|---|---|
| Storage temperature range | -40°C~+105°C |
SOLDER ABILITY
| Recommended IR Reflow Temperature |
|---|
Additional information
| Country Of Origin | CN |
|---|
