Available on Backorder: Manufacturer lead time 10-12 weeks

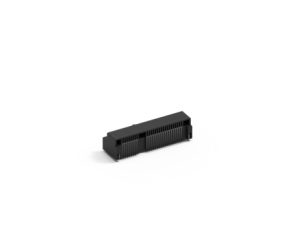

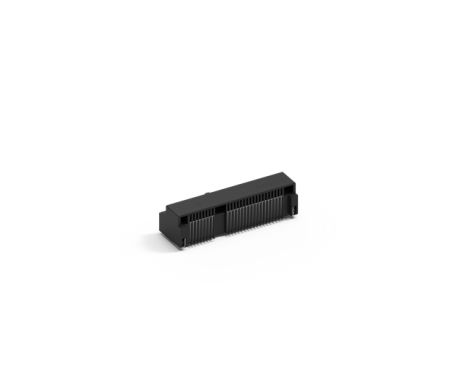

Mini PCI Express Socket, H=8.0mm, GF
$1.316 USD
Available on Backorder: Manufacturer lead time 10-12 weeks
Packing: Reel
MPQ: 400
MOQ: 400
ATTEND’s Mini PCIe card connectors can support Storage SSD and WiFi, Bluetooth, global navigation satellite systems, near field communication. PCI-SIG standard compliant.
● 0.8mm pitch and a 52-pin configuration with varying heights.
● Latches are available for selected heights.
| Plastic Body | LCP, Color Black |
|---|---|
| Contact | Phosphor Bronze Alloy (C5191R-H) Contacts Rating |
| Contacts Rating | Contact Area: Gold Plated |
| Solder Area | Tin |
| Hold Down | Brass (C2680R-H) |
| Hold Down Plating | Tin |
| Current Rating | 0.5A Max. /1pin |
|---|---|
| Voltage Rating | 50V AC |
| Contact Resistance | 30mΩ Max. |
| Insulation Resistance | 500MΩ Min. |
| Contact Normal Force | 50gf per pin Min. |
|---|---|
| Durability | 100 mating and unmating cycles |
| Operating temperature range | -40℃~+90℃ |
|---|---|
| Storage temperature range | -40℃~+90℃ |
| Solder Ability | 260±5℃ |
| Country Of Origin | CN |
|---|
