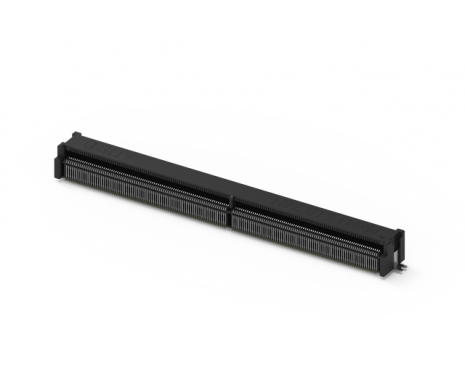

125B-78C00
$10.304 USD
MXM3 314Pin H=7.8mm Pitch 0.5mm 5u”
Available on Backorder: Manufacturer lead time 10-12 weeks
Description
Packing: Reel
MPQ: 350
MOQ: 350
ATTEND’s MXM Series to meet the requirements of computer-on-modules for SMARC and Qseven specification. Now offers a 314-pin and 230-pin high-speed version.
Applications with an increased need for high-speed signal contacts are thus also accommodated.
●MXM 230 pin for QSeven, Pith 0.5mm, H=7.8mm
●MXM 3.0 for SMARC/EDM, 314Pin , Pith 0.5mm, H=7.8mm
ELECTRICAL
| Current Rating | 0.5A per pin |
|---|---|
| Voltage Rating | 50V AC/DC |
| Contact Resistance | 40mΩ |
| Insulation Resistance | 250MΩ |
| Dielectric Withstanding Voltage | 250VAC |
MECHANICAL
| Durability | 30 Cycle |
|---|---|
| Insertion Force | 13N max. |
| Extraction Force | 16N max. |
ENVIRONMENTAL
| Operating temperature range | -40°C~+85°C |
|---|---|
| Storage temperature range | -40°C~+85°C |
SOLDER ABILITY
| Recommended IR Reflow(Wave Soldering) Temperature | 260°C |
|---|
Additional information
| Country Of Origin | TW |
|---|
Brand
Attend
