202G-FDN0-R

202G-FDN0-R

$0.644 USD

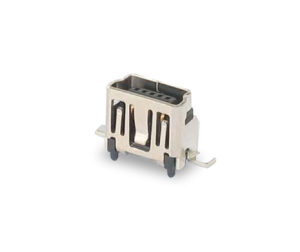

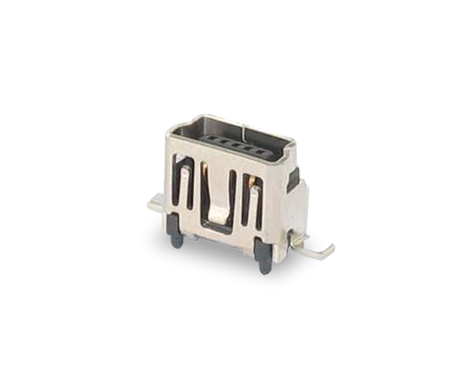

Mini USB 2.0 B Type Receptacle Vertical SMT Type, Shell SMT, 10u”

Available on Backorder: Please email us at aspeed-order@aspeedelectronics.com to get a stock alert



For More than 5000 pcs, You can contact us and request for price
SKU: 202G-FDN0-R Categories: , ,

Description

Packing: Reel
MPQ: 600
MOQ: 600

USB connector, a universal connector is widely applied to various industries and products because it featured the hot-swapping and Plug-n-Play which change the user behavior of all pluggable devices. Since the very first launched in 1998, USB has been developed into a huge family, from the standard to high-speed data transmission, power supplier and other additional types. ATTEND offers a full range USB selections for designing which focus on stability, durability, and affordability.

ELECTRICAL

Current Rating 1A
Voltage Rating 30VAC/DC
Contact Rating 50mΩ Max.
Insulation Resistance 1000MΩ Min. 500VDC
Dielectric Withstanding Voltage 500VAC for 1 minute

MECHANICAL

Durability 5,000 Cycle
Insertion Force 3.57 Kfg Max.
Extraction Force 0.71Kgf Min.

ENVIROMENTAL

Operating temperature range -20℃~+85℃
Storage temperature range -20℃~+60℃

SOLDER ABILITY

Recommended IR Reflow Temperature 260℃± 5℃

Additional information

Country Of Origin

CN

Brand

Attend
