206H-SDAN-R01
I/O Connector

206H-SDAN-R01

$1.560 USD & Free Shipping

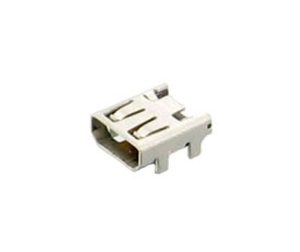

HDMI D Type Receptacle R/A SMT Type, Shell DIP (Straight) w/o Peg, 15u”

Available on Backorder: Manufacturer lead time 10-12 weeks

Price Breakdown

Quantity Price
1 - 9 $1.560 USD
10 - 49 $1.440 USD
50 - 99 $1.320 USD
100 - 499 $1.260 USD
500 - 999 $1.170 USD
1,000+ $1.070 USD


For More than 5000 pcs, You can contact us and request for price
SKU: 206H-SDAN-R01 Categories: , ,

Description

MPQ: 1.2k
MOQ: 3.6k
Packing: Reel

HDMI stands for High Definition Multimedia Interface. It is capable of sending higher quality information to a device than its analog counterparts. The information which sent over via HDMI is uncompressed digital video/audio data, because it could transfer the video/audio signal in a single cable same time, that could save PCB design space effectively.

ELECTRICAL

Current Rating 0.5A per pin
Voltage Rating 40V AC/DC
Contact Resistance 10mΩ
Insulation Resistance 100MΩ
Dielectric Withstanding Voltage Initial: 500V AC
Dielectric Withstanding Voltage Final: 250V AC

MECHANICAL

Durability 5000 Cycle
Insertion Force 5~25N Max
Extraction Force 44.1N Max.

ENVIRONMENTAL

Operating temperature range -40℃~+85℃
Storage temperature range -40℃~+85℃

SOLDER ABILITY

Recommended IR Reflow Temperature 260℃ 10Sec
Recommended PCB Thickness 1.0mm

Brand

Attend
