207A-BAB0-01
, ,

207A-BAB0-01

Availability:

Available on Backorder: Manufacturer lead time 10-12 weeks

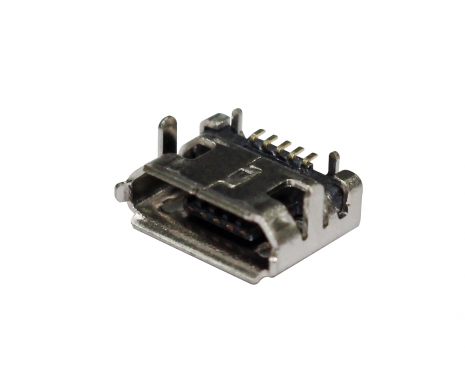

Micro USB 2.0 B Type Receptacle R/A SMT Type, Shell DIP, GF

$0.504 USD

Available on Backorder: Manufacturer lead time 10-12 weeks



For More than 5000 pcs, You can contact us and request for price

Packing: Reel
MPQ: 1.2k
MOQ: 1.2k

USB connector, a universal connector is widely applied to various industries and products because it featured the hot-swapping and Plug-n-Play which change the user behavior of all pluggable devices. Since the very first launched in 1998, USB has been developed into a huge family, from the standard to high-speed data transmission, power supplier and other additional types. ATTEND offers a full range USB selections for designing which focus on stability, durability, and affordability.

ELECTRICAL

Current Rating: Pin1,5 1.8A
Current Rating: Pin2,3,4 0.5A
Voltage Rating 40V AC
Contact Resistance 60mΩ
Insulation Resistance 100MΩ
Dielectric Withstanding Voltage 100VAC

MECHANICAL

Durability 10,000 Cycle
Mating Force 35N max.
Unmating Force 8N min.

ENVIRONMENTAL

Operating temperature range -30°C~+80°C
Storage temperature range -30°C~+80°C

SOLDER ABILITY

Soldered Temperature 255±5°C 5sec
Recommended IR Reflow(Wave Soldering) Temperature 260°C 10sec max
SKU: 207A-BAB0-01 Categories: , ,
Country Of Origin

CN

Brand

Attend
