207F-BA00
, ,

207F-BA00

Availability:

Available on Backorder: Manufacturer lead time 17-19 weeks

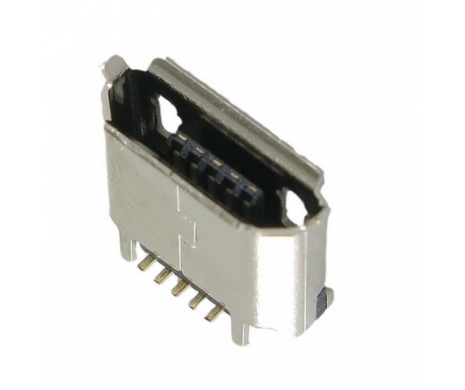

Micro USB 2.0 B Type Receptacle Vertical SMT Type, Shell DIP ( Straight) w/Cap, GF

$0.700 USD

Available on Backorder: Manufacturer lead time 17-19 weeks



For More than 5000 pcs, You can contact us and request for price

Packing: Reel
MPQ: 700
MOQ: 1.4k

USB connector, a universal connector is widely applied to various industries and products because it featured the hot-swapping and Plug-n-Play which change the user behavior of all pluggable devices. Since the very first launched in 1998, USB has been developed into a huge family, from the standard to high-speed data transmission, power supplier and other additional types. ATTEND offers a full range USB selections for designing which focus on stability, durability, and affordability.

ELECTRICAL

Current Rating 0.5A per pin
Voltage Rating 40V DC
Contact Resistance 30mΩ max.
Insulation Resistance 1000MΩ
Dielectric Withstanding Voltage 100VAC

MECHANICAL

Durability 10,000 Cycle
Insertion Force 35N max.
Extraction Force 8N max.

ENVIRONMENTAL

Operating temperature range -30℃~+65℃
Storage temperature range -40℃~+85℃

SOLDER ABILITY

Recommended IR Reflow Temperature 260℃ 10Sec
Recommended PCB Thickness 1.0mm
SKU: 207F-BA00 Categories: , ,
Country Of Origin

CN

Brand

Attend
