210A-11C0B-R
$1.120 USD

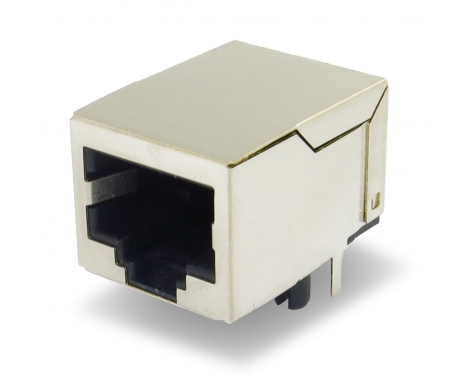

RJ45 Jack Shielded Type, R/A Bottom Latch DIP Type, w/o LED w/o EMI Tab, 5u” – (Obsolete)
Out of stock: Please enter your email adress below the product price to get a stock alert
Description
Packing: Tray
MOQ: 5K
Specification:
ELECTRICAL
| Current Rating | 1.5AMP |
|---|---|
| Voltage Rating | 125VAC RMS. |
| Contact Resistance | 45 Milliohms MAX. |
| Insulation Resistance | 1000 Megohms MIN@500 VDC |
| Dielectric Withstanding Voltage | 1000 VDC RMS 60Hz, 1MIN |
MECHANICAL
| Housing Material | Glass Filled Polyester or High Temp. UL94V-0. |
|---|---|
| Contact Material | Phosphor Bronze φ0.46mm . |
| Plating | Gold Plating over Nickel. |
| Shield Plating | Nickel Plating over Brass. |
| Operating Life | 750 Cycles Min. |
| PCB Retention Pre-Solder | 1 LB Min. |
| PCB Retention Post-Solder | 10 LBS Min. |
ENVIRONMENTAL
| Storage Temperature | -40℃ to +70℃ |
|---|---|
| Operation Temperature | 0℃ to +70℃ |
| Wave Solding Temperature | 225℃~265℃(5~10 Seconds) |
| Wave Solding Temperature | Mates with Modular Plug Conforming to FCC Part 68, Subpart F. |
Additional information
| Country Of Origin | TW |
|---|
