210A-11C0B-RA4
, , ,

210A-11C0B-RA4

Availability:

Out of stock: Please email us at aspeed-order@aspeedelectronics.com for more information about this part number

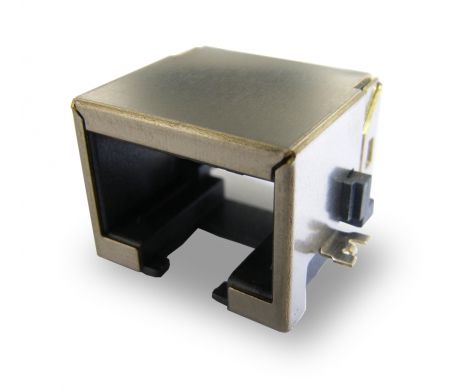

RJ45 Jack Shielded Type, R/A Middle Mount Bottom Latch SMT Type, w/o LED & EMI Tab, Shell DIP, Sink=3.1mm, 5u” – (Obsolete)

$1.150 USD

Out of stock: Please email us at aspeed-order@aspeedelectronics.com for more information about this part number

Packing: Tray
MOQ: 5K

RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It’s a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio that supports your need in different specifications, materials, ports, and functions.

Specification:

ELECTRICAL

Current Rating 1.5AMP
Voltage Rating 125VAC RMS.
Contact Resistance 45 Milliohms MAX.
Insulation Resistance 1000 Megohms MIN@500 VDC
Dielectric Withstanding Voltage 1000 VDC RMS 60Hz, 1MIN

MECHANICAL

Shield Material Brass, t= 0.25mm.
Housing & Insert Material High Temp. UL94V-0, Black
Contact Material Phosphor Bronze t=0.35mm
Plating Contact Area: Selective Gold Plating
Plating Tails-150u” Tin/Lead Free Min. Over 50u” Nickel
Operating Life 750 Cycles Min.
PCB Retention Post-solder 10 LBS MIN.

ENVIRONMENTAL

Storage -40℃ to +85℃
Operation -40℃ to +85℃
IR Reflow Soldering Temperature 255℃~265℃ (5~10 Sec.)
SKU: 210A-11C0B-RA4 Categories: , , ,
Country Of Origin

TW

Brand

Attend
