210A-14C0B-R
$3.580 USD

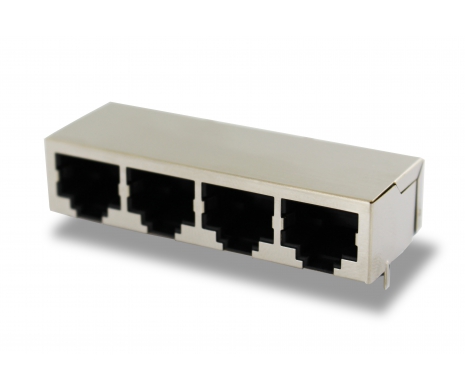

RJ45 Jack Shielded Type 1×4, R/A Bottom Latch DIP Type, w/o LED w/o EMI Tab, 5u” – (Obsolete)
Out of stock: Please enter your email adress below the product price to get a stock alert
Description
Packing: Tray
MOQ: 5K
Specification:
ELECTRICAL
| Current Rating | 1.5AMP |
|---|---|
| Voltage Rating | 125VAC |
| Contact Rating | 30mΩ Max. |
| Insulation Resistance | 1000MΩMin. |
| Dielectric Withstanding Voltage | 1000VAC 60Hz 1Minute |
MECHANICAL
| Housing Material | High Temp. UL94V-0, Black |
|---|---|
| Contact Material | Phosphor Bronze t: 0.35mm. |
| Plating | Gold Plating Over Nickel |
| Operating Life | 750 Cycles Min. |
| PCB Retention Pre-solder | 1 LB Min. |
| PCB Retention Post-solder | 10 LBS Min. |
ENVIRONMENTAL
| Operating TemperatureRange | -0℃~+70℃ |
|---|---|
| Storage Temperature Range | -40℃~+85℃ |
| Storage Temperature Range | Mate with Modular Plug Conforming to FCC PART 68, SUBPART F |
SOLDER ABILITY
| Recommended Wave Soldering Temperature | 260℃ |
|---|---|
| Recommended PCB Thickness | 1.6mm |
| PCB Retention Pre-solder | 1LB Min. |
| PCB Retention Post-solder | 10LB Min. |
Additional information
| Country Of Origin | TW |
|---|
