210D-11CB2
$2.680 USD & Free Shipping

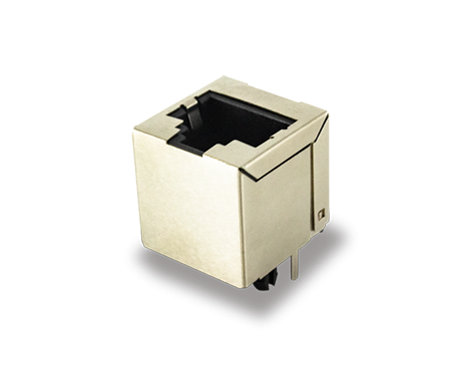

Cat 6 RJ45 Jack Shielded Type, Vertical Bottom Latch DIP Type, w/o LED w/o EMI Tab, 5u” – (Obsolete)
Out of stock: Please enter your email adress below the product price to get a stock alert
Description
Packing: Tray
MOQ: 1K
SPECIFICATIONS
ELECTRICAL
| Current Rating | 1.5A |
|---|---|
| Voltage Rating | 125VAC |
| Contact Resistance | 35mΩ |
| Insulation Resistance | 1,000MΩ |
| Dielectric Withstanding Voltage | 1,000VAC |
MECHANICAL
| Durability | 750 Cycle |
|---|---|
| PCB Retention Pre-Solder | 1LB min. |
| PCB Retention Post-Solder | 10LBS min. |
ENVIRONMENTAL
| Operating temperature range | -40℃~+85℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Storage temperature range | Mates with modular plug conforming to FCC part 68, subpart F. |
SOLDER ABILITY
| Wave Soldering Temp | 255°C to 260°C/ 5 to 10 sec. |
|---|
Additional information
| Country Of Origin | TW |
|---|
Brand
Attend
