211B-11C0A-R
$1.180 USD & Free Shipping

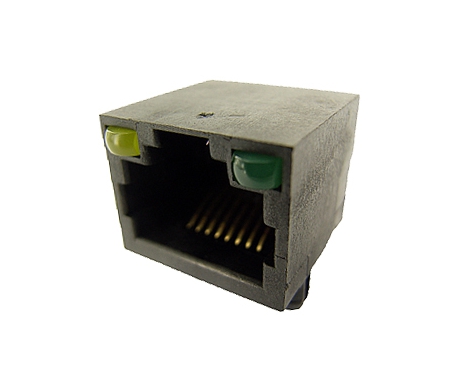

RJ45 Plastic Type, R/A Upper Latch DIP Type, w/LED Y(Left)+G(Right), 5u” – (Obsolete)
Out of stock: Please enter your email adress below the product price to get a stock alert
Description
Packing: Tray
MPQ: 2.1K
MOQ: 8.4K
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It’s a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
SPECIFICATIONS
ELECTRICAL
| Voltage Rating | 125VAC RMS. |
|---|---|
| Current Rating | 1.5AMP |
| Contact Resistance | 30 Milliohms MAX. |
| Insulation Resistance | 1000 Megohms MIN@500 VDC |
| Dielectric Strength | 1000 VDC RMS 60Hz, 1MIN |
MECHANICAL
| Housing Material | High Temp. UL94V-0 BK. |
|---|---|
| Insert Material | Glass Filled Polyester UL94V-0 BK. |
| Back Plate Material | Glass Filled Polyester UL94V-0 BK. |
| Contact Material | Phosphor Bronze t=0.35mm . |
| Plating | Gold Plating over Nickel. |
| Operating Life | 750 Cycles Min. |
| PCB Retention Pre-Solder | 1 LB Min. |
| PCB Retention Post-Solder | 10 LBS Min. |
ENVIRONMENTAL
| Storage Temperature | -40℃ to +85℃ |
|---|---|
| Operation Temperature | 0℃ to +70℃ |
| Operation Temperature | Mates with Modular Plug Conforming to FCC Part 68, Subpart F. |
Additional information
| Country Of Origin | TW |
|---|
Brand
Attend
