211C-14CAA
$7.040 USD & Free Shipping

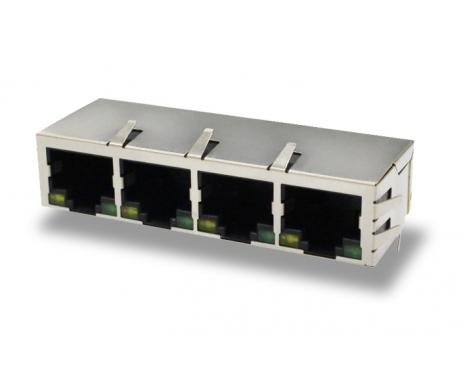

Cat 5e RJ45 Jack Shielded Type 1×4, R/A Bottom Latch DIP Type, w/LED Y(Left)+G(Right) w/ EMI Tab, 5u” – (Obsolete)
Out of stock: Please enter your email adress below the product price to get a stock alert
Description
Packing: Tray
MOQ: 1K
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It’s a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
SPECIFICATIONS
ELECTRICAL
| Current Rating | 1.5A |
|---|---|
| Voltage Rating | 125VAC |
| Contact Resistance | 30mΩ |
| Insulation Resistance | 1000MΩ Min. at 500 VDC |
| Dielectric Withstanding Voltage | 1000VAC 60Hz 1 minute |
| LED Ratings | 2.2V Typical. |
| Reverse Voltage | 5V max. |
MECHANICAL
| Durability | 750 Cycle |
|---|---|
| PCB Retention Pre-Solder | 1 LB min. |
| PCB Retention Post-Solder | 10 LBS min. |
ENVIRONMENTAL
| Operating temperature range | -40°C~+85°C |
|---|---|
| Storage temperature range | -40°C~+85°C |
SOLDER ABILITY
| Wave Soldering Temp | 255°C to 260°C/ 5 to 10 sec. |
|---|
Additional information
| Country Of Origin | TW |
|---|
Brand
Attend
