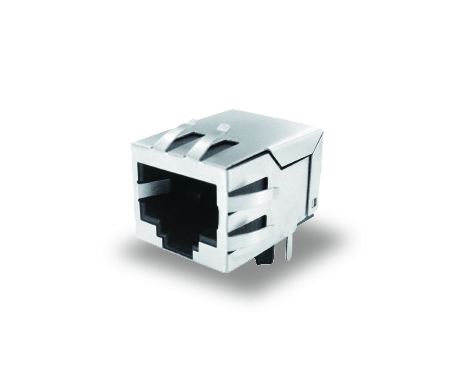

212A-11CA0-R
$3.200 USD & Free Shipping
RJ45 Jack Magnetic Type, R/A Bottom Latch DIP Type, w/EMI Tab w/o LED, 5u” – (Obsolete)
Out of stock: Please enter your email adress below the product price to get a stock alert
Description
Packing: Tray
MOQ: 5K
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It’s a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
SPECIFICATIONS
ELECTRICAL
| Insertion Loss | 0.3-100MHz -1.0 dB Max. |
|---|---|
| Return Loss | 1-30MHz -20dB Min. Load 100 Ohms |
| Return Loss | 30-60MHz -15dB Min. Load 100 Ohms |
| Return Loss | 60-80MHz -10dB Min. Load 100 Ohms |
| Cross Talk | 1 – 100MHz -30dB Min. |
| Common to Common Mode Rejection | 1-100MHz -30dB Min. |
| Turn Ratios | RX=1:1(+/-3%) TX=1:1(+/-3%) |
| Isolation 60Hz | Input to Output 1500Vrms, 60 Seconds |
| Primary Inductance | @100KHz 0.1Vrms.8mA DC Bias 350uH Min. |
| Rise Time (10-90%) | 2.5ns Typical |
MECHANICAL
| Housing Material | High Temp. UL94V-0. |
|---|---|
| Contact Material | Phosphor Bronze t=0.35mm |
| Plating | Gold Plating over Nickel. |
| Operating Life | 750 Cycles Min. |
| PCB Retention Pre-Solder | 1 LB Min. |
| PCB Retention Post-Solder | 10 LBS Min. |
ENVIRONMENTAL
| Storage Temperature | -40°C to +85°C. |
|---|---|
| Operation Temperature | 0℃ to +70℃ |
| Wave Soldering Temperature | 255℃~265℃(3~5 Seconds) |
| Wave Soldering Temperature | Mates with Modular Plug Conforming to FCC Part 68, Subpart F. |
