213A-11CAA-R
$3.840 USD & Free Shipping

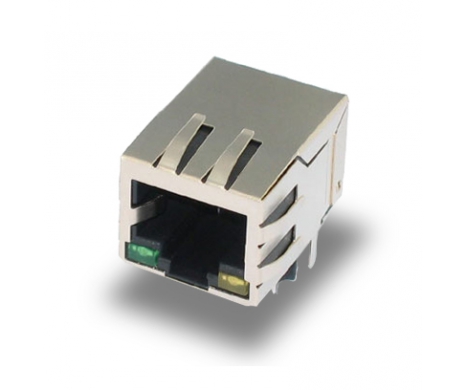

RJ45 Jack Magnetic Type, R/A Bottom Latch DIP Type, w/EMI Tab w/LED Y(Left)+G(Right), 5u” – (Obsolete)
Out of stock: Please enter your email adress below the product price to get a stock alert
Description
Packing: Tray
MOQ: 5K
SPECIFICATION
ELECTRICAL
| Insertion Loss | 1-100MHz -1.0 dB Max. |
|---|---|
| Insertion Loss | 1-30MHz -18dB Min. Load 100 Ohms |
| Return Loss | 30-80MHz -12dB Min. Load 100 Ohms |
| Cross Talk | 30MHz – 40dB Typ. |
| Cross Talk | 60MHz – 35dB Typ. |
| Cross Talk | 100MHz – 30dB Typ. |
| CMRR | 1-50MHz – 30dB Typ. |
| CMRR | 50-130MHz -20dB Typ. |
| Turn Ratios | RX=1:1(+/-3%) TX=1:1(+/-3%) |
| Isolation 60Hz | Input to Output 1500Vrms, 60 Seconds |
| Primary Inductance | @100KHz 0.1Vrms.8mA DC Bias 350uH Min. |
MECHANICAL
| Housing Material | High Temp. UL94V-0. |
|---|---|
| Contact Material | Phosphor Bronze t=0.35mm |
| Plating | Gold Plating over Nickel. |
| Operating Life | 750 Cycles Min. |
| PCB Retention Pre-Solder | 1 LB Min. |
| PCB Retention Post-Solder | 10 LBS Min. |
ENVIRONMENTAL
| Storage Temperature | -40℃~+85℃ |
|---|---|
| Operation Temperature | 0℃ to +70℃ |
| Wave Soldering Temperature | 230℃~250℃(3~5 Seconds) |
| Wave Soldering Temperature | Mates with Modular Plug Conforming to FCC Part 68, Subpart F. |
Additional information
| Country Of Origin | TW |
|---|
