213B-14CAB-01
with LED

213B-14CAB-01

$18.650 USD & Free Shipping

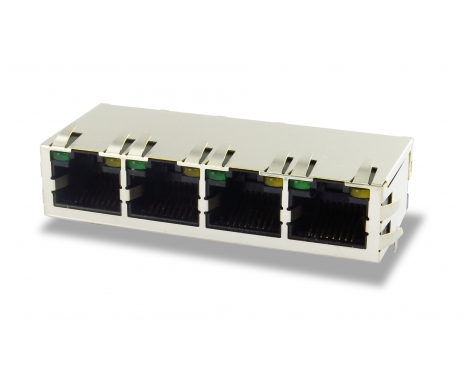

RJ45 Jack Magnetic Gigabit Type 1X4, R/A Upper Latch DIP Type, w/EMI Tab w/LED Y(Left)+G(Right), – (Obsolete)

Out of stock: Please enter your email adress below the product price to get a stock alert

SKU: 213B-14CAB-01 Categories: , , , ,

Description

Packing: Tray
MOQ: 2K

RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It’s a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.

SPECIFICATION

ELECTRICAL CARACTERISTICS
TEST NOTES: (25°±5°C)

TR: (100KHz, 0.1V) PINS:(2,3):(J1,J2)=1CT:1CT±3%;(4,5):(J3,J6)=1:1±3%
TR: (100KHz, 0.1V) PINS:(6,7):(J4,J5)=1CT:1CT±3%;(8,9):(J7,J8)=1:1±3%
LX: (100KHz, 100mV, 8mA, DC Bias) PINS: (J1,J2),(J3,J6),(J4,J5),(J7,J8)=350uH MINIMUM
DCR: PINS (2,3),(4,5),(6,7),(8,9)=1.5 OHMS MAXIMUM. PINS: (J1,J2),(J3,J6),(J4,J5),(J7,J8)=1.5 OHMS MAXIMUM.
HIPOT PINS(2,3)TO(J1,J2):(4,5)TO(J3,J6)=1500VAC FOR 2 SECONDS
HIPOT PINS(6,7)TO(J4,J5);(8,9)TO(J7,J8)=1500VAC FOR 2 SECONDS
INSERTION LOSS -0.5dB MAXIMUM AT 1MHz TO 65MHz -0.8dB MAXIMUM AT 65MHz TO 100MHz -1.2dB MAXIMUM AT 100MHz TO 125MHz
RETURN LOSS -16dB MINIMUM AT 1MHz TO 30MHz -13.5dB MINIMUM AT 30MHz TO 40MHz -11.5dB MINIMUM AT 40MHz TO 50MHz -10dB MINIMUM AT 50MHz TO 80MHz
CROSS TALK 30dB MINIMUM AT 1MHz TO 100MHz
COMMON TO DIFFERENTIAL MODE REJECTION 30dB MINIMUM AT 1MHz TO 100MHz

Additional information

Country Of Origin

TW

Brand

Attend
