214A-11CAA
$4.410 USD & Free Shipping

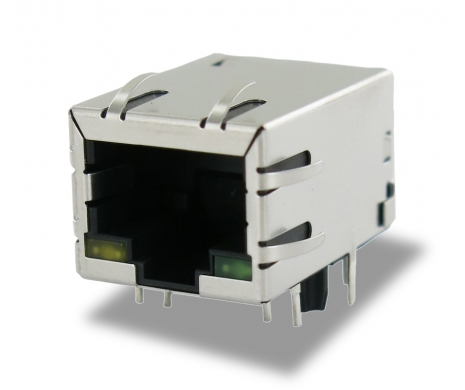

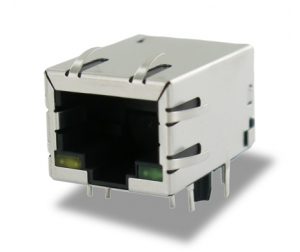

RJ45 Jack PoE Type, R/A Bottom Latch DIP Type, w/EMI Tab w/LED Y(Left)+G(Right), 5u” – (Obsolete)
Out of stock: Please enter your email adress below the product price to get a stock alert
Description
Packing: Tray
MOQ: 5K
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It’s a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which support your need in different specifications, materials, ports, and functions.
SPECIFICATION
ELECTRICAL
| Inductance At 100 KHz, 100 mV 8mADC Bias | 0.5A max. |
|---|---|
| Leakage | Inductance 0.4 uH Max. @100KHz 100Mv |
| Insertion Loss | 1.1 dB Max. @ 1-100 MHz |
| Return Loss | 18dB Min. @ 1-30MHz |
| Return Loss | 16dB Min. @ 30-60MHz |
| Return Loss | 12dB Min. @ 60-80MHz |
| Cross Talk | 30dB Min. @ 1-100MHz |
| Common Mode Rejection | 30dB Min. @1-100MHz |
| Isolation Voltage @60Hz | 500Vrms(Input To Output) 60 Seconds |
| Voltage Rating | 57VDC. Max |
| Current Rating | 350mADC |
MECHANICAL
| Operating Life | 750 Cycles Min. |
|---|
ENVIRONMENTAL
| Operating temperature range | 0℃~+70℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Storage temperature range | Mates With Modular Plug Conforming To TIA-1096-A |
Additional information
| Country Of Origin | TW |
|---|
