217B-AG01
Available on Backorder: Manufacturer lead time 17-19 weeks

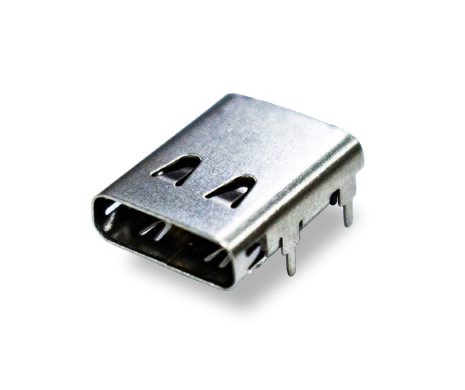

USB Type C socket, R/A Hybrid Type w/o rear cover, Standard type 1.5mm, 30u”Pd+2u” Gold
$2.296 USD
Available on Backorder: Manufacturer lead time 17-19 weeks
Packing: Reel
MPQ: 700
MOQ: 700
USB Type-C is a 24-pin USB connector system, which is distinguished by its two-fold rotationally-symmetrical connector, which allows users to plug in the connector without checking the front or back. ATTEND USB Type-C connector series is provide the best flexibility and saving solution for PCB designers, featuring the high-frequency mating in data transfer rate up to 10GBit/s and allow 500 mA device charging support.
ELECTRICAL
| Current Rating | 5A MAX. |
|---|---|
| Voltage Rating | 20V AC/DC |
| Contact Resistance | 40mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Withstanding Voltage | 100VAC |
MECHANICAL
| Durability | 10,000 Cycle |
|---|---|
| Insertion Force | 5N to 20N |
| Extraction Force | 8N to 20N |
ENVIRONMENTAL
| Operating temperature range | -40°C~+105°C |
|---|
SOLDER ABILITY
| Recommended IR Reflow Temperature | 260°C |
|---|
| Country Of Origin | CN |
|---|
Brand
Attend
