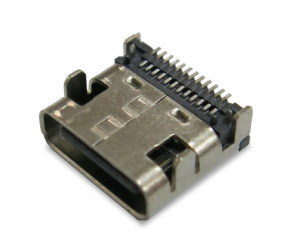

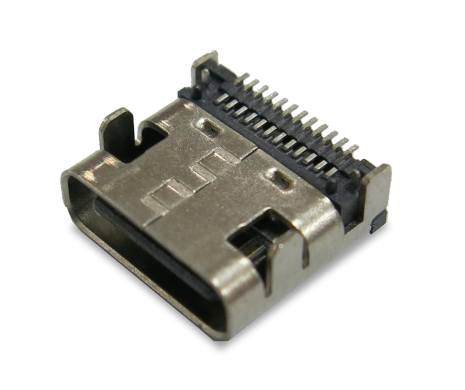

217B-BC02
Available on Backorder: Manufacturer lead time 17-19 weeks
USB Type C socket R/A SMT Type, 5u”
$1.400 USD
Available on Backorder: Manufacturer lead time 17-19 weeks
Packing: Reel
MPQ: 900
MOQ: 900
USB Type-C is a 24-pin USB connector system, which is distinguished by its two-fold rotationally-symmetrical connector, which allows users to plug in the connector without checking the front or back. ATTEND USB Type-C connector series is provide the best flexibility and saving solution for PCB designers, featuring the high-frequency mating in data transfer rate up to 10GBit/s and allow 500 mA device charging support.
ELECTRICAL
| Current Rating (Vbus) | 5A |
|---|---|
| Current Rating (Vconn & GND) | 1.25A |
| Current Rating (other pin) | 0.25A |
| Voltage Rating | 5VAC max |
| Contact Resistance | 40mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Withstanding Voltage | 100VAC |
MECHANICAL
| Durability | 10,000 Cycle |
|---|---|
| Insertion Force | 5N to 20N |
| Extraction Force | 8N to 20N |
ENVIRONMENTAL
| Operating temperature range | -55°C~+85°C |
|---|---|
| Storage temperature range | -55°C~+85°C |
| Country Of Origin | CN |
|---|
Brand
Attend
