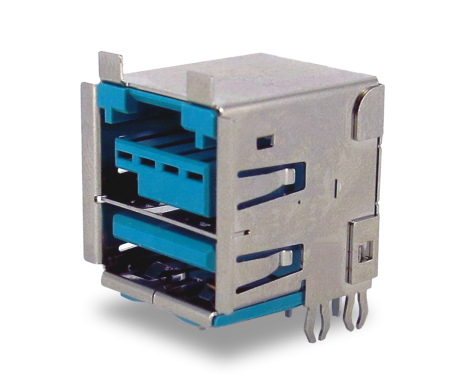

Connector, I/O Connector, Powered USB
218B-12G01
Availability:
Available on Backorder: Manufacturer lead time 17-19 weeks
Powered USB Receptacle 12V Green, 30u”
$4.730 USD
Available on Backorder: Manufacturer lead time 17-19 weeks
Packing: Tray
As an addition to the USB standard that allows for higher-power devices to obtain power through their USB host instead of requiring an independent power supply or external AC adapter. It is mostly used in point-of-sale equipment, such as receipt printers and barcode readers.
ELECTRICAL
| Current Rating: USB Section | 1.5A |
|---|---|
| Current Rating: Powered Section | 3.0A |
| Voltage Rating: USB | 5.25V DC |
| Voltage Rating: Powered | 12V |
| Contact Resistance | 40mΩ Max. |
| Insulation Resistance | 1000MΩ at 500V DC |
| Dielectric Withstanding Voltage | 750V AC |
MECHANICAL
| Durability | 1,500 Cycle |
|---|---|
| Mating Force | 67N max. |
| UN-Mating Force | 10N max. |
ENVIRONMENTAL
| Operating temperature range | -20°C~+85°C |
|---|---|
| Storage temperature range | -20°C~+85°C |
SOLDER ABILITY
| Recommend Temperature | 245°C |
|---|
| Country Of Origin | TW |
|---|
