223A-1401
, ,

223A-1401

Availability:

Out of stock: Please email us at aspeed-order@aspeedelectronics.com for more information about this part number

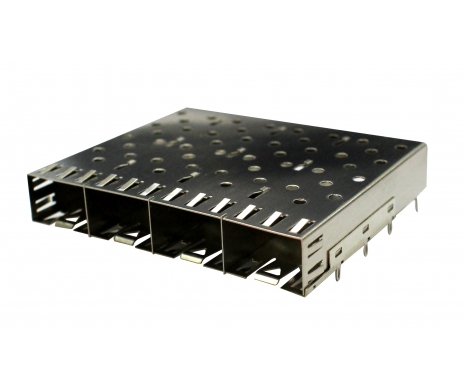

SFP Cage 1×4 Press Fit Type – (Obsolete)

$4.224 USD

Out of stock: Please email us at aspeed-order@aspeedelectronics.com for more information about this part number

Packing: Tray
MOQ: 1K

The small form-factor pluggable (SFP) is a compact, hot-pluggable network interface module used for both telecommunication and data communication applications. ATTEND offers a variety of SFP/SFP+/QSFP cage types that support 1Gbps to 40Gbps data rates for Gigabit Ethernet and Optical Fiber applications and compatible industry-wide standard SFP/ SFP+/ QSFP modules for your application usage to fit your high-speed networking request.

Specification:

ELECTRICAL

Current Rating 0.5A MAX.
Voltage Rating 30V AC/DC
Contact Resistance 20mΩ
Insulation Resistance 500MΩ
Differential Impedance Voltage 100Ω

MECHANICAL

Housing Material LCP UL94V-0, Black
Contact Material Phosphor Bronze, 0.2T
Operating Life 250 Cycles Min.

ENVIRONMENTAL

Operating temperature range -40℃~+85℃
Storage temperature range -40℃~+85℃
IR Temperature 255°C±5°C (5 to 10 sec)
SKU: 223A-1401 Categories: , ,
Country Of Origin

TW

Brand

Attend
