303A-361420-000
Available on Backorder: Manufacturer lead time 10-12 weeks

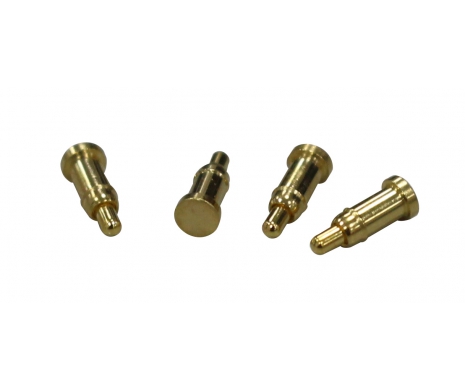

Pogo Pin, 1Pin T/L 5.0mm W/H 3.6mm
$1.180 USD
Available on Backorder: Manufacturer lead time 10-12 weeks
Packing: Reel
MPQ: 1k
MOQ: 10k
A pogo pin or spring-loaded pin is a type of electrical connector mechanism. The conducting surface is gold plated which provides great corrosion resistance, enhances its mechanical strength and electrical conductivity.
Pogo pin combines the advantages of fine pitch, high current, and long lifetime that can be widely used in industrial, medical, and consumer applications.
ELECTRICAL
| Current Rating | 2A per pin |
|---|---|
| Voltage Rating | 12V AC/DC |
| Contact Resistance | 50mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500VAC |
MECHANICAL
| Pin Force | 1.08N±0.25N at Stroke 1.0mm |
|---|---|
| Durability | 20,000 Cycles |
ENVIRONMENTAL
| Operating temperature range | -40°C~+85°C |
|---|---|
| Storage temperature range | -40°C~+85°C |
SOLDER ABILITY
| Recommended IR Reflow Temperature | 250°C, 10Sec |
|---|
| Country Of Origin | TW |
|---|
Brand
Attend
