304B-1716SA
$4.480 USD

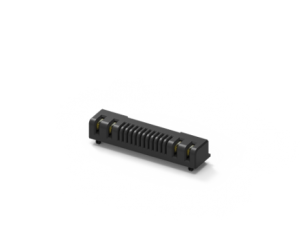

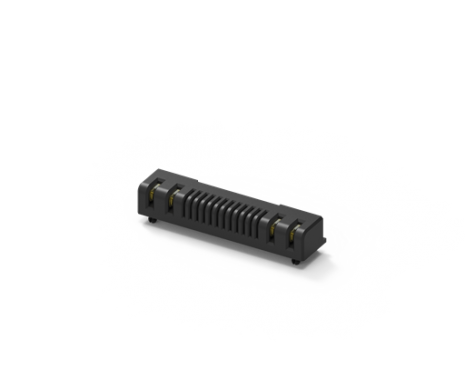

DC High Power Connector Socket 1.7mm Pitch 16Pin, GF – (Obsolete)
Out of stock: Please enter your email adress below the product price to get a stock alert
Description
Packing: Tray
Our DC high power connector was original design for battery charging, it may also apply to other application to provides stable and continuous power transmission to your device, and support the demand for compact, robust, high current density, board to board mating connector
ELECTRICAL
| Current Rating | 15A Max. per Larger Pin, 1A Max. per Smaller Pin |
|---|---|
| Voltage Rating | 12V AC |
| Contact Resistance | 30mΩ Max. |
| Insulation Resistance | 100MΩ at 500VDC/ 2 Minute |
| Dielectric Withstanding Voltage | 500VAC |
MECHANICAL
| Durability | 200 Cycles |
|---|---|
| Mating Force | 3,500g Max. |
| Extraction Force | 250g Min. |
ENVIRONMENTAL
| Operating temperature range | -25°C~+85°C |
|---|
SOLDER ABILITY
| Solder Temperature | 245°C/ 5 Sec |
|---|---|
| Resistance to Soldering Heat | 260°C/ 5 Sec |
Additional information
| Country Of Origin | TW |
|---|
