310-81-116-41-001101

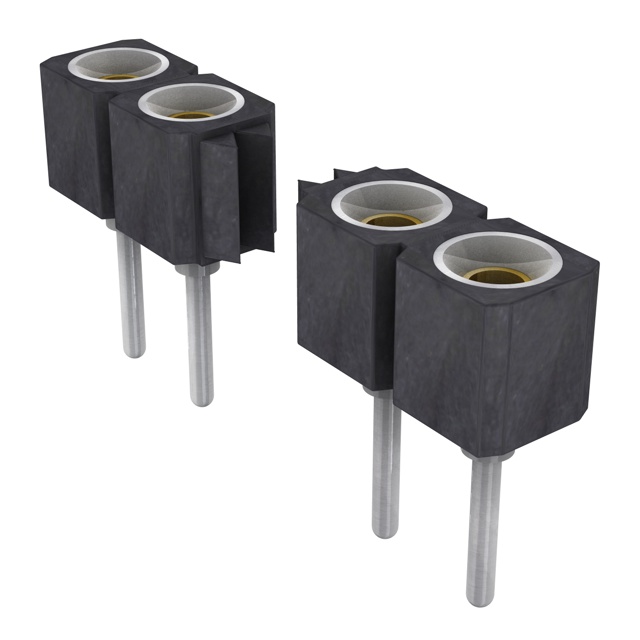

16 Position Socket Connector 0.100″ (2.54mm) Through Hole Gold

SKU: 999-51-113-10-1 Categories: ,

Description

Contact Type
Female Socket
Style
Board to Board
Number of Positions
Number of Positions Loaded
All
Pitch – Mating
0.100″ (2.54mm)
Number of Rows
1
Row Spacing – Mating
Mounting Type
Through Hole
Termination
Solder
Fastening Type
Push-Pull
Contact Finish – Mating
Contact Finish Thickness – Mating
Flash
Insulation Color
Black
Insulation Height
0.165″ (4.20mm)
Contact Length – Post
0.125″ (3.18mm)
Operating Temperature
-55°C ~ 125°C
Material Flammability Rating
UL94 V-0
Contact Finish – Post
Tin
Mated Stacking Heights
Ingress Protection
Features
Current Rating (Amps)
3A
Voltage Rating
Applications
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape
Circular
Contact Material
Beryllium Copper
Contact Finish Thickness – Post
Base Product Number
310-87

Brand

Preci-dip
