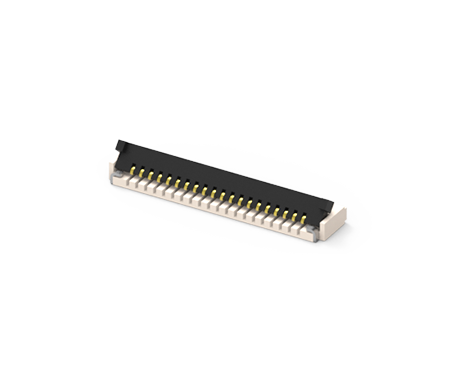

FPC Connector Horizontal type, Pitch 0.5mm ,H: 0.9 mm
$0.899 USD
Available on Backorder: Manufacturer lead time 10-12 weeks
Packing: Reel
MPQ: 5K
MOQ: 5K
Flexible Printed Circuit (FPC) Connector is suitable for the application which needs to connect serial or graphical LCD to the motherboard with the demand of limited space, smaller centerline or pitch spacing, because it’s lower profile heights, and lighter interconnect. ATTEND offers a wide range of pin options and mounting types for you to fit with your application design, including Slide and Flip-lock type.
| Current Rating | 0.5A |
|---|---|
| Voltage Rating | 50V(AC/DC) |
| Contact Resistance | 40mΩ |
| Insulation Resistance | 50MΩ |
| Dielectric Withstanding Voltage | 250VAC |
| Durability | 30 Cycle |
|---|---|
| Retention Force | Per Pin 0.3N Min. |
| Operating temperature range | -40℃~+85℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Recommended IR-Reflow Temperature | 260°C |
|---|
| Country Of Origin | TW |
|---|
