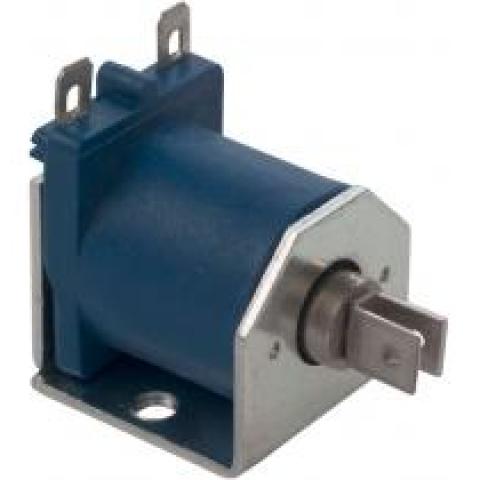

The C7 from Deltrol Controls is a C-frame solenoid that provides efficient performance in AC voltage applications. This solenoid is available with UL certification.
Electrical Specifications
Coil Voltages: 6, 12, 24, 120, 240 VAC (Other voltages available upon request)
Power: 7.8 VA continuous, 21 VA intermittent, 78 VA pulse
Coil Termination: 0.187″ QC terminals standard
Coil Treatment: Plastic encapsulated
Insulation Class: Class A Rating – 105ºC (221ºF) standard
Dielectric Strength: 30 volts and under, 500 VRMS | Over 30 volts, 1000 VRMS plus 2X rated voltage for 1 minute
Mechanical Specifications
Size (l,w,h): 1.140 x 1.062 x 1.025” [29.0 x 27.0 x 26.0]
Plunger Diameter: Ø0.38″ [Ø9.5]
Plunger Guide Material: Plastic
Mounting: 2x #10-32 UNF-2B tapped holes
Weight: 2.5 oz [70.9 gms]
Life Expectancy: 250,000 cycles – dependent on application conditions
