53754-82
$38.960 USD
MED16 X 1.125 24VDC PULL CONT
Available on Backorder: Manufacturer lead time 10-12 weeks
Description

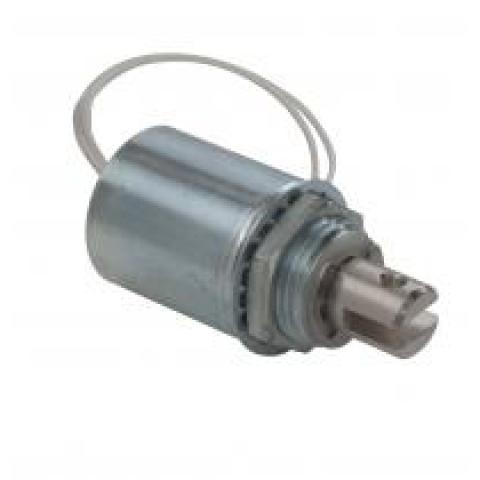

The MED16x1.125 from Deltrol Controls is a tubular solenoid that provides high force and long life in DC voltage applications. The solenoid has a threaded bushing for easy installation. Continuous duty options have UL certification, while intermittent and pulse duty options utilize a UL certified insulation system.
Electrical Specifications
Coil Voltages: 6, 12, 24, 115 VDC (Other DC voltages available upon request)
Power: 8 Watts continuous, 19 Watts intermittent, 77 Watts pulse
Coil Termination: 24 awg wire leads
Coil Treatment: Tape wrapped
Insulation Class: Class A Rating – 105ºC (221ºF) standard
Dielectric Strength: 30 volts and under, 500 VRMS | Over 30 volts, 1000 VRMS plus 2X rated voltage for 1 minute
Mechanical Specifications
Size: Ø1.00 x 1.13″ [Ø25.4 x 28.6]
Plunger Diameter: Ø0.44″ [Ø11.1]
Plunger Guide Material: Plastic
Mounting: Ø0.88″ [Ø22.2] threaded bushing
Weight: 4.4 oz [125 gms]
Life Expectancy: 250,000 cycles – dependent on application conditions
Datasheet
Additional information
Country Of Origin | China, US |
---|
Brand
Deltrol Controls
