70035-80

$53.590 USD

DSVP11N-5PX-8SL-6R5

Available on Backorder: Manufacturer lead time 10-12 weeks

Price Breakdown

Quantity Price
1 - 5 $53.590 USD
6 - 10 $50.530 USD
11 - 24 $48.240 USD
25 - 49 $45.170 USD
50 - 99 $38.280 USD
100 - 249 $30.630 USD
250+ $22.970 USD

For More than 5000 pcs, You can contact us and request for price

Description

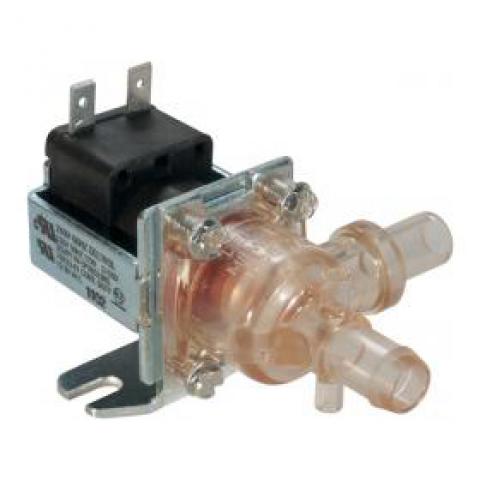

The DSVP11N is a 2-way, direct acting solenoid valve used to dispense low pressure water from a tank.  It is the #1 choice for commerical coffee equipment in the USA.  This valve is designed for potable water applications.

Electrical Specifications

Coil Voltages: 24, 110, 120, 220, 240 VAC | 12, 24, 36 VDC (Other voltages available upon request)
Coil Power: AC valves 12 Watts | DC valves 11 Watts
Coil Terminals: 0.25″ QC spade terminals
Duty Cycle: Continuous = 100%
Coil Treatment: Polyester encapsulated
Insulation Class: Class F 155º C (311º F)
Ambient Temperature: 35º C (95º F) max

Mechanical Specifications

Media: Water up to 99º C with Polysulfone body | 77º C with Nylon body
Operating Pressure: 0-12 inches water column (higher upon request)
Operating Position: Any position between horizontal and facing up
Mounting Bracket: See data sheet for available options
Inlet / Outlet connection: See data sheet for available options
Valve Body Material: PSU Polysulfone | PA66 Nylon
Diaphragm Material: VMQ – Silicone
Weight: 8 oz (227 gms)

Agency Approvals: URcURNSF, CE (does not apply to all models)

Datasheet

Additional information

Country Of Origin

China, US

Brand

Deltrol Controls

Deltrol Controls offers one of the most extensive standard product lines of solenoids, relays, and dispensing valves in the world. They are used in a variety of applications including HVAC, vending equipment, security systems, engine controls, office equipment, and many more. We pioneered the encapsulated coil and are proud to offer it on most of our products. We have extensive experience in customizing standard products, as well as designing new products specific to an application. Deltrol Controls is located in Milwaukee, Wisconsin, and is a wholly-owned subsidiary of Deltrol Corp. For over 50 years, we have designed and manufactured solenoids, relays, valves, and custom assemblies for a variety of applications. Our Milwaukee operation employs approximately 125 people, working out of a 110,000 square foot manufacturing facility. We also have manufacturing capabilities in other parts of the world that allow us to be a globally competitive supplier. Deltrol Corp is a privately held, 4th generation family owned business, founded in 1963. It consists of three separate divisions: Deltrol Controls, Deltrol Fluid Products, and Fluid Power & Controls Co., Ltd. [ninja_form id=4]
