70047-80
$79.770 USD
DSVP11-11PX-8SB-10FS-L
Available on Backorder: Manufacturer lead time 10-12 weeks
Description

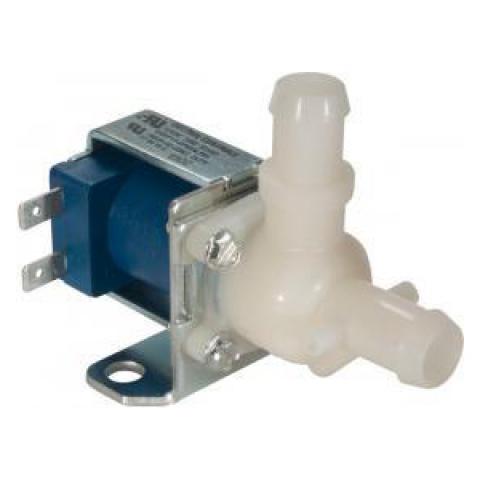

The DSVP11 is a 2-way, direct acting solenoid valve used to dispense low pressure water from a tank. This version of the DSVP11 valve is designed for non-potable water applications.
Electrical Specifications
Coil Voltages: 24, 110/120, 220/240 VAC | 12, 24, 36 VDC (Other voltages available upon request)
Coil Power: AC valves 12 Watts | DC valves 11 Watts
Coil Terminals: 0.25″ QC spade terminals
Duty Cycle: Continuous = 100%
Coil Treatment: Polyester encapsulated
Insulation Class: Class F 155º C (311º F)
Ambient Temperature: 35º C (95º F) max
Mechanical Specifications
Media: 77º C with Nylon body
Operating Pressure: 0-12 inches water column (higher upon request)
Operating Position: Any position between horizontal and facing up
Mounting Bracket: See data sheet for available options
Inlet / Outlet connection: See data sheet for available options
Valve Body Material: PA66 Nylon
Diaphragm Material: FKM – Viton® | VMQ – Silicone
Weight: 8 oz (227 gms)
Agency Approvals: UR, cUR, CE (does not apply to all models)
Datasheet
Additional information
| Country Of Origin | China, US |
|---|
