73013-81

$51.310 USD

DSVP15N-240E-AM

Available on Backorder: Manufacturer lead time 10-12 weeks

Price Breakdown

Quantity Price
1 - 5 $51.310 USD
6 - 10 $48.380 USD
11 - 24 $46.180 USD
25 - 49 $43.250 USD
50 - 99 $36.650 USD
100 - 249 $29.320 USD
250+ $21.990 USD

For More than 5000 pcs, You can contact us and request for price

Description

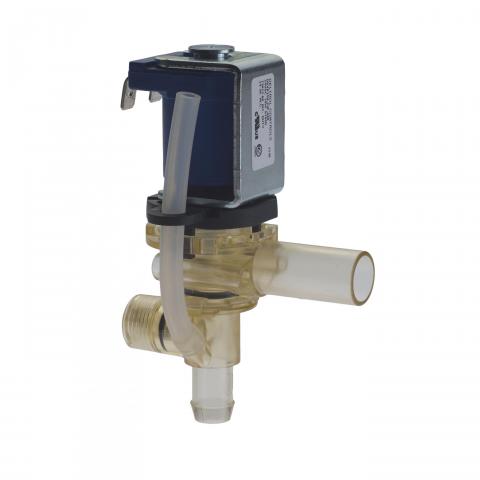

The DSVP15N is a 2-way, direct acting solenoid valve with an integrated flow adjuster and twist-lock assembly used to dispense low pressure water from a tank.  It is an ideal choice for single-cup beverage systems.  This valve is designed for potable water applications.

Electrical Specifications

Coil Voltages: 24, 100, 120, 200, 240 VAC | 12, 24, 36 VDC (Other voltages available upon request)
Coil Power: AC valves 12 Watts | DC valves 11 Watts
Coil Terminals: 0.25″ QC spade terminals
Duty Cycle: Intermittent = 50%, 1 minute on
Coil Treatment: Polyester encapsulated
Insulation Class: Class F 155º C (311º F)
Ambient Temperature: 45º C (113º F) max

Mechanical Specifications

Media: Water up to 99º C with Polysulfone body
Operating Pressure: 0-24 inches water column (higher upon request)
Operating Position: Any position between horizontal and facing up
Mounting Bracket: See data sheet for available options
Inlet / Outlet connection: See data sheet for available options
Valve Body Material: PSU Polysulfone
Diaphragm Material: VMQ – Silicone
Weight: 5.5 oz (156 gms)

Agency Approvals: URcURNSF, ENEC, WRAS (does not apply to all models)
