Description

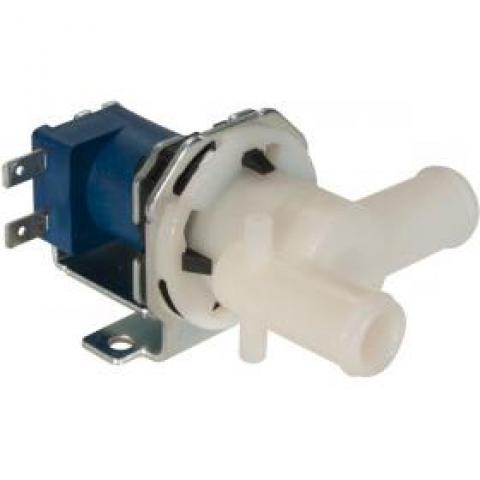

The DSVP12 from Deltrol Controls is a 2-way, direct acting valve with a modular twist-lock connection. This version of the DSVP12 valve is designed for non-potable water applications.
Electrical Specifications
Coil Voltages: 24, 110/120, 220/240 VAC | 12, 24, 36 VDC (Other voltages available upon request)
Coil Power: AC 12 Watts cont, 16 Watts int | DC 12 Watts Int
Coil Terminals: 0.25″ QC spade terminals
Duty Cycle: Continuous = 100% | Intermittent = 4 mins on / 5 mins off
Coil Treatment: Polyester encapsulated
Insulation Class: Class F 155º C (311º F)
Ambient Temperature: 25º C (77º F) max
Mechanical Specifications
Media: Water up to 99º C with Noryl® body | 77º C with Nylon body
Operating Pressure: 0-24 inches of water column (up to 3 psi upon request)
Operating Position: Any position between horizontal and facing up
Mounting Bracket: See data sheet for available options
Inlet / Outlet connection: See data sheet for available options
Valve Body Material: PPE Noryl®, PA66 Nylon
Diaphragm Material: FKM Viton®, VMQ – Silicone
Weight: 7.5 oz (213 gms)
Agency Approvals: UR, cUR, ENEC (does not apply to all models)
Patents: US Patent 6,684,901
Datasheet
Additional information
Country Of Origin | China, US |
---|
Brand
Deltrol Controls
