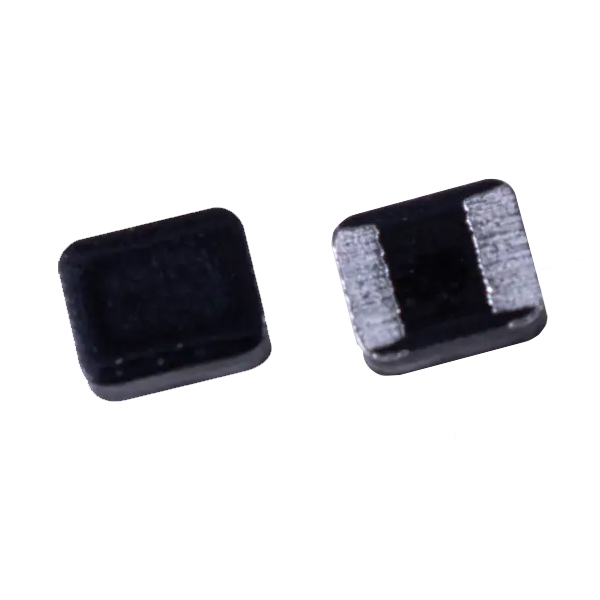

MPI20-V1 Miniature Power Inductors

MPI20-V1 Miniature Power Inductors

Category: Tags: , ,
Eaton

Description

Coiltronics/Eaton MPI20-V1 Miniature Power Inductors feature a 2.2A to 5.5A current range, maximum 2.2µH inductance range, and -40°C to +125°C temperature range. These inductors offer a high current carrying capacity in a compact 0806 footprint, rugged construction, and a high current, low power design. Coiltronics/Eaton MPI20-V1 Miniature Power Inductors are ideal for digital cameras, portable media devices, and mobile/smart phone applications.

Specifications:

  • High current carrying capacity in a compact 0806 (2016 metric) footprint
  • Magnetically shielded, Low EMI
  • Rugged construction
  • DC-DC converter applications up to 3MHz
  • -40°C to +125°C operating temperature range
  • Inductance range from 0.47μH to 2.2μH
  • Current range from 2.2A to 5.5A
  • 2.2mm x 1.8mm footprint surface mount package in 1.0mm height maximum
  • Moisture Sensitivity Level (MSL): 1

Applications:

  • Mobile/smart phones
  • Handheld/mobile equipment
  • Tablets/e-readers
  • Digital cameras
  • Wearable devices
  • Notebook/netbook/laptop regulators
  • Portable media players

Download: PDF
