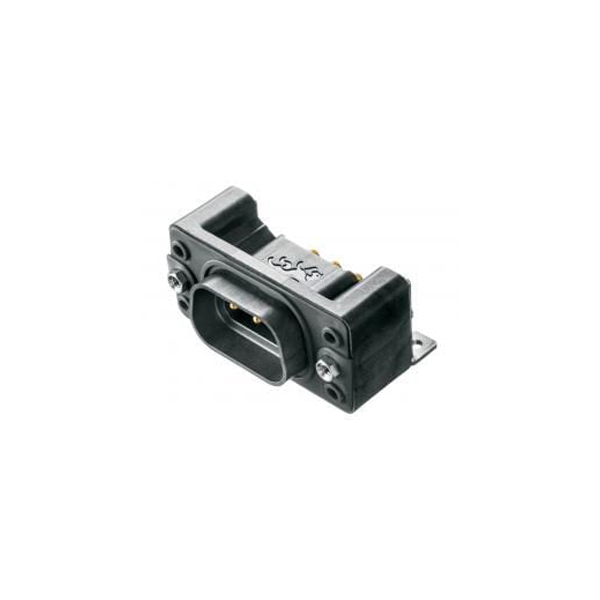

PA Series

The PA series IP65/IP67/IP68/IP69K connector offers a multiplicity of connector features, which makes it a first choice for demanding rail, earthmoving, battery and related applications. It features operating temperatures up to 200ºC and is UV, shock & vibration, and salt spray protected.

Description

General

Part Number Prefix PA
Performance Level Industrial, Mil/aero
Qualifications UL, IEC safety standard, Shock/Vibration testing standard, EN45545-2 HL3, FAR 25.853, NFF 16-101/102, Salt spray test

Materials

Insulator Material LCP
Insulator Color Black
Flammability Rating UL94 V-0
Contact Material Copper Alloy
Contact Plating Gold flash, 0.76µm Au, 1.27µm Au

Electrical

Insulator Resistance (GΩ) 5.0
Working Voltage (V rms) 1600
Initial Contact Resistance (mΩ, max) 5
Contact Current Rating at 30ºC Temperature Rise Up to 45A
Contact Current Rating per UL 1977 Up to 105A

Mechanical

Shape Rectangular
Body Style Free cable, Panel mount
Insulator Construction One-piece
Polarization Method Trapezoidal shape
Locking System Jackscrews
Contact Style Fixed, Removable
Contact Size #22, #18, #16, #12
Female Contact Design Closed entry
Contact Retention Mechanism Metal clip, Press-in
Contact Retention (N) 45 to 67
Contact Termination Wire, PCB
Mating Cycles 1000

Environmental

Temperature Range (ºC) -55 to 200
Lead Free Solder Process Yes
Waterproof IP65, IP67, IP68, IP69K
UV Protection Rated (f1) per UL 746C
