Description

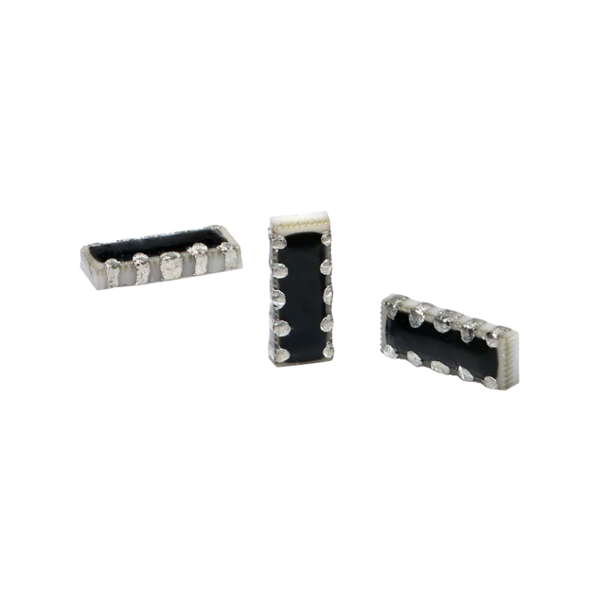

Bussmann / Eaton PolySurg™ Four-Channel ESD Suppressor (42510ESDA-TR1) protects sensitive electronic circuits from ESD without distorting data signals. The SMT four-channel array provides protection through its ultra-low capacitance (0.1pF typical) and is well suited for HDMI ESD protection applications. Halogen-free, lead-free, and RoHS compliant, Bussmann / Eaton PolySurg™ Four-Channel ESD Suppressor provides fast response time (<1ns), allowing equipment to pass the IEC 61000-4-2 Level 4 test.

Features:

  • Halogen free, lead free and RoHS compliant for global applications
  • Ultra-low capacitance (0.1pF typical), ideally suited for protecting high speed data applications
  • Provides ESD protection with fast response time (<1ns) allowing equipment to pass the IEC 61000-4-2 Level 4 test
  • Four (4) channel array
  • Zero signal distortion
  • Low leakage current (<0.01μA typical)

Applications:

  • Digital video equipment
  • Mobile phone
  • GPS Antenna
  • Bluetooth communication equipment antenna circuit
  • IEEE-1394
  • DVI
  • HDMI

Specifications:

  • 12V rated voltage
  • 0.01μA leakage current (max @ 12VDC)
  • 300V typical trigger voltage (Vt)
  • 30V typical clamping voltage (Vc)
  • 8kV ESD voltage capability, IEC 61000-4-2 contact discharge mode
  • 15kV ESD voltage capability, IEC 61000-4-2 air discharge mode
  • ESD withstand pulses 100 Times (min)
  • +85°C/90%RH with rated voltage for 1000hrs load humidity
  • -40°C to +85°C, 30 minute cycle thermal shock
  • 0.1pF typical capacitance
  • <1ns response time
  • -40°C to +85°C operating temperature range
