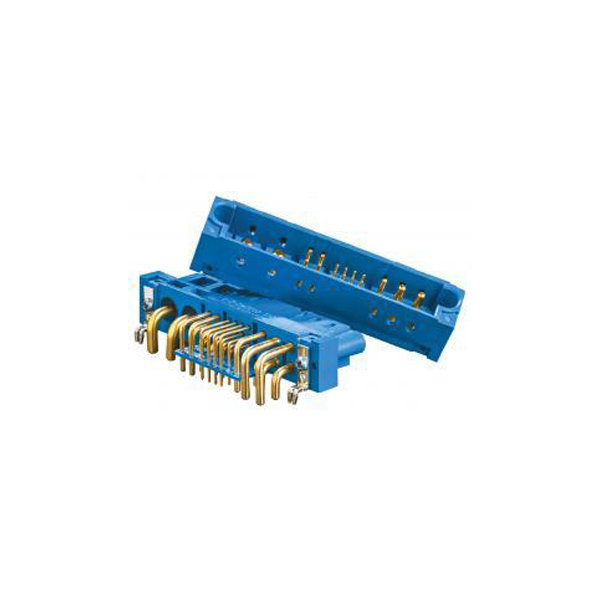

SP Series

SP Series

The PA series IP65/IP67/IP68/IP69K connector offers a multiplicity of connector features, which makes it a first choice for demanding rail, earthmoving, battery and related applications. It features operating temperatures up to 200ºC and is UV, shock & vibration, and salt spray protected.

Category: Tags: , ,
Positronic

Description

General

Part Number Prefix SP
Performance Level Industrial, Mil/aero
Qualifications UL #E49351
RoHS Compliance RoHS 5/6 (6/6 on select parts)

Materials

Insulator Material Polyester
Insulator Color Blue
Flammability Rating UL 94V-0
Contact Material Copper Alloy
Contact Plating Gold flash, 0.76µm Au, 1.27µm Au

Electrical

Insulator Resistance (GΩ) 5.0
Proof Voltage (V rms) 300 to 3000
Working Voltage (V rms) 100 to 1000
Initial Contact Resistance (mΩ, max) Power: 0.2, Signal: 5
Contact Current Rating (A) Power: up to 100, Signal: 3

Mechanical

Shape Rectangular
Body Style Free cable, PCB, Panel mount
Insulator Construction One-piece
Polarization Method Insulator keyway
Locking System Integrated latch, Jackscrews
Blind Mating Optional
Contact Style Fixed, Removable
Contact Size #4, #8, #12, #16, #18, #22
Female Contact Design Open entry, Closed entry
Contact Retention Mechanism Metal clip, Press-in
Contact Retention (N) 27 to 134
Contact Termination Wire, PCB
Mating Cycles up to 1000

Environmental

Temperature Range (ºC) -55 to +125

Brand

Positronic
