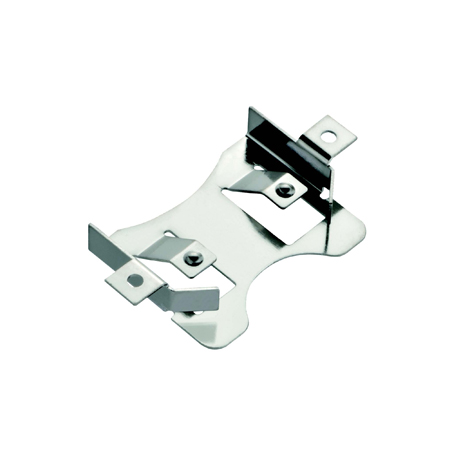

Surface Mounting Metal(SMTM)

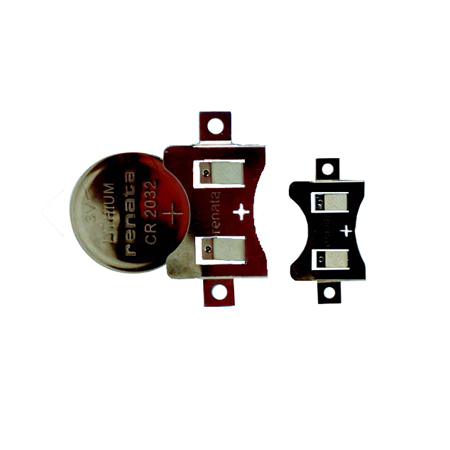

Surface Mounting Metal(SMTM) - Image 2

Surface Mounting Metal(SMTM)

Category: Tags: ,
Renata

Description

Specifications:

  • Holder material: Nickel plated phosphor bronze
  • Nickel plated throughout
  • Sizes: CR1225, CR1632 and CR2032
  • Weight range: 0.40 … 0.90 g
  • Height range: 3.20 … 4.00 mm
  • Industrial bulk packaging / Tape and reel packaging
  • Operating temperature range -40°C / +100°C (without battery)

Features:

  • Low profile for compact PCBs
  • Light weight metal material
  • Dual spring contacts for low resistance
  • Soldering holes for increased joint strength
  • Designed for automatic „pick & place“ mounting
  • Safe retention of coin cell
  • Supports reflow and wave soldering
  • Designed for high temperature soldering

Download: Technical Drawing

Brand

Renata

Since 1982, when Renata launched the industrial production and the supply of lithium batteries, the range of applications has grown continuously. In addition to the wide spectrum of memory backup power sources, Renata lithium batteries are used for different applications in the computer and automotive industries, telecommunications, medical industry and in an increasing variety of portable devices (measuring equipment, payment systems, toys etc.). Renata lithium batteries meet the highest quality standards and offer excellent reliability. Sufficient inventory as well as a network of dedicated importers and distributors make Renata products readily available world-wide. [ninja_form id=4]
