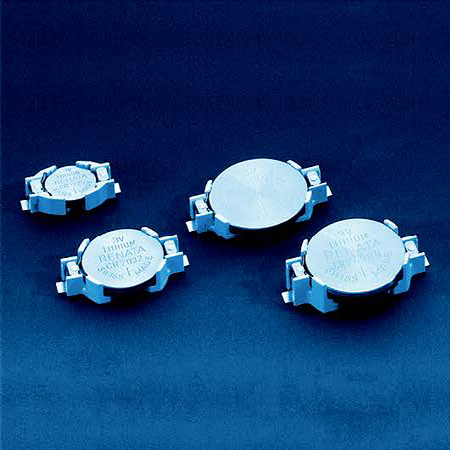

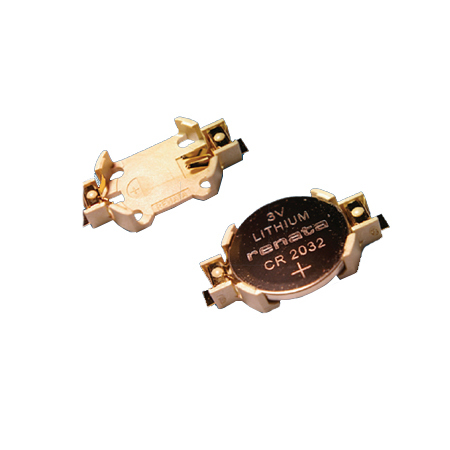

Surface Mounting(SMTU)
Surface Mounting(SMTU) - Image 2
Surface Mounting(SMTU) - Image 3
Surface Mounting(SMTU) - Image 4

Surface Mounting(SMTU)

Category: Tags: ,
Renata

Description

Specifications:

  • Holder material: heat resistant and glass fibre filled LCP
  • Flammability rating UL 94 V-0
  • Battery contacts: spring stainless steel AISI 301 (nickel-plated throughout / Solder areas tin-plated)
  • Contact resistance between contacts and cell is less than 100 mΩ (measured at AC 1kHz)
  • UL certifed: file E218732
  • UL 1977 compliant
  • Operating temperature range -40°C … +100°C (without battery)
  • Moisture sensitivity level: Class 1

Features:

  • Robust design and materials
  • Easy and fast replacement of battery
  • Design for automatic „pick & place“ mounting
  • Automated battery mounting supported
  • Safe retention of coin cell
  • Clear separation of connections
  • Protection against short-circuits
  • Protection against inverse polarity
  • Protection against leak currents
  • Suitable for reflow soldering

Download: Technical Drawing

Brand

Renata

Since 1982, when Renata launched the industrial production and the supply of lithium batteries, the range of applications has grown continuously. In addition to the wide spectrum of memory backup power sources, Renata lithium batteries are used for different applications in the computer and automotive industries, telecommunications, medical industry and in an increasing variety of portable devices (measuring equipment, payment systems, toys etc.). Renata lithium batteries meet the highest quality standards and offer excellent reliability. Sufficient inventory as well as a network of dedicated importers and distributors make Renata products readily available world-wide. [ninja_form id=4]
